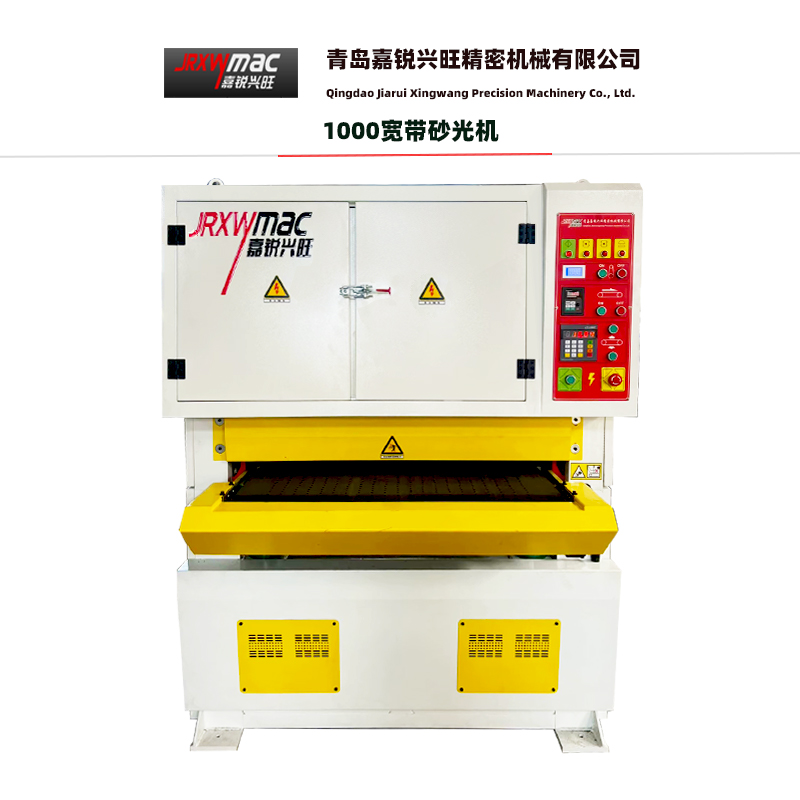

Metal broadband sander
I. Purpose and Main Structure
Workpiece grinding, deburring, oxide layer, slag/scum removal, straight grain polishing.
The purpose of the metal sander developed by the company is to meet the needs of small metal processing workshops and large production facilities. This machine has complete functions and saves labor.
This machine tool adopts wide-band single sand rack.
Metal processing broadband sander is economical and efficient, which will eventually upgrade your deburring and finishing operations and get rid of time-consuming manual polishing. This machine can effectively deburr, oxide layer, remove slag/scum or finish straight lines only by replacing the abrasive belt.
二、基本参数
Third, the basic parameters
加工板材宽度Width of processed plate | 20-1000mm |
加工板材厚度Thickness of processed plate | 0.5-90mm |
加工板材长度Length of processed plate | ≥240mm |
砂带尺寸（宽*长）Abrasive belt size (width * length) | 1020*1850mm |
输送带速度Conveyor belt speed | 2-10米/分变频调速 |
输送带电机功率Conveyor belt motor power | 1.5KW |
工作台升降电机功率Table lifting motor power | 0.37KW |
电机功率power of motor | 11KW |
电机总功率Total motor power | 12.87KW |
设备重量Equipment weight | 1500kg |
